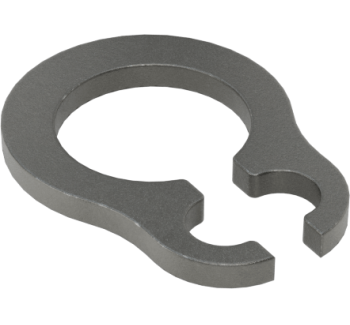

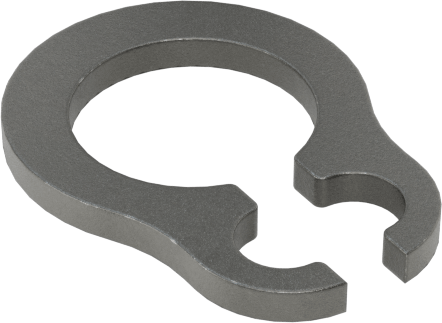

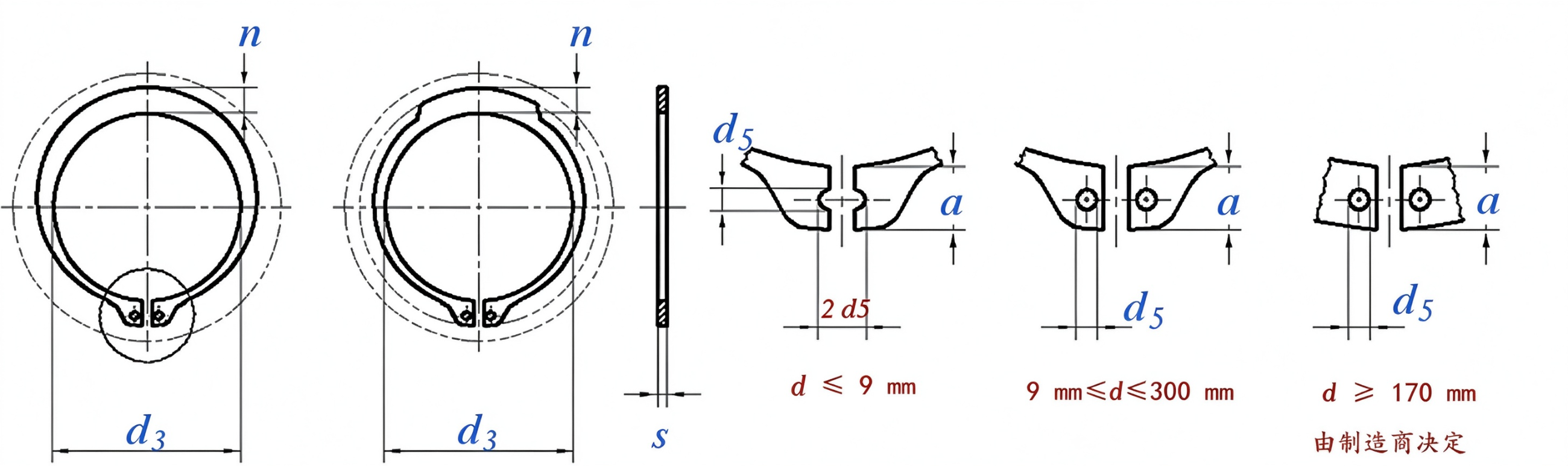

DIN471 轴用弹性挡圈 retaining rings for shafts(external),circlips GB894.1-86
公称直径
d | |
| s | 最大值 |
| | 最小值 |
| | d3 | 最大值 |
| | 最小值 |
| | d5 | 最小值 |
| | a | 最大值 |
| | n | ≈ |
| | 千件重(钢制)≈kg |
| | 0.4 | 0.4 | 0.6 | 0.7 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | | 0.35 | 0.35 | 0.55 | 0.65 | 0.75 | 0.75 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | 0.94 | | 2.74 | 3.74 | 4.74 | 5.64 | 6.56 | 7.46 | 8.46 | 9.4 | 10.3 | 11.1 | 12 | 13 | 13.9 | 14.8 | 15.8 | | 2.55 | 3.55 | 4.55 | 5.45 | 6.32 | 7.22 | 8.22 | 8.94 | 9.84 | 10.64 | 11.54 | 12.54 | 13.44 | 14.34 | 15.34 | | 1 | 1 | 1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.5 | 1.5 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | 1.7 | | 1.9 | 2.2 | 2.5 | 2.7 | 3.1 | 3.2 | 3.3 | 3.3 | 3.3 | 3.3 | 3.4 | 3.5 | 3.6 | 3.7 | 3.8 | | 0.8 | 0.9 | 1.1 | 1.3 | 1.4 | 1.5 | 1.7 | 1.8 | 1.8 | 1.8 | 2 | 2.1 | 2.2 | 2.2 | 2.3 | | 0.017 | 0.022 | 0.066 | 0.084 | 0.121 | 0.158 | 0.300 | 0.340 | 0.410 | 0.500 | 0.530 | 0.640 | 0.670 | 0.700 | 0.820 |
|
公称直径
d | |
| s | 最大值 |
| | 最小值 |
| | d3 | 最大值 |
| | 最小值 |
| | d5 | 最小值 |
| | a | 最大值 |
| | n | ≈ |
| | 千件重(钢制)≈kg |
| | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.75 | | 1.14 | 1.14 | 1.14 | 1.14 | 1.14 | 1.14 | 1.14 | 1.14 | 1.44 | 1.44 | 1.44 | 1.44 | 1.44 | 1.44 | 1.69 | | 16.6 | 17.6 | 18.63 | 19.63 | 20.63 | 22.41 | 23.41 | 24.41 | 26.11 | 27.11 | 28.11 | 29.81 | 31.75 | 32.45 | 33.45 | | 16.14 | 17.14 | 18.08 | 19.08 | 20.08 | 21.78 | 22.78 | 23.78 | 25.48 | 26.48 | 27.48 | 29.18 | 31 | 31.7 | 32.7 | | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2.5 | 2.5 | 2.5 | 2.5 | | 3.9 | 3.9 | 4 | 4.1 | 4.2 | 4.4 | 4.4 | 4.5 | 4.7 | 4.8 | 5 | 5.2 | 5.4 | 5.6 | 5.6 | | 2.4 | 2.5 | 2.6 | 2.7 | 2.8 | 3 | 3 | 3.1 | 3.2 | 3.4 | 3.5 | 3.6 | 3.8 | 3.9 | 4 | | 1.11 | 1.22 | 1.30 | 1.42 | 1.50 | 1.77 | 1.90 | 1.96 | 2.92 | 3.2 | 3.31 | 3.54 | 3.8 | 4.00 | 5.00 |
|
公称直径
d | |
| s | 最大值 |
| | 最小值 |
| | d3 | 最大值 |
| | 最小值 |
| | d5 | 最小值 |
| | a | 最大值 |
| | n | ≈ |
| | 千件重(钢制)≈kg |
| | 1.75 | 1.75 | 1.75 | 1.75 | 1.75 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2.5 | 2.5 | | 1.69 | 1.69 | 1.69 | 1.69 | 1.69 | 1.93 | 1.93 | 1.93 | 1.93 | 1.93 | 1.93 | 1.93 | 1.93 | 2.43 | 2.43 | | 35.45 | 36.89 | 38.89 | 41.89 | 44.89 | 46.19 | 48.19 | 51.26 | 52.26 | 54.26 | 56.26 | 58.26 | 59.26 | 61.26 | 63.96 | | 34.7 | 35.6 | 37.6 | 40.6 | 43.6 | 44.9 | 46.9 | 49.7 | 50.7 | 52.7 | 54.7 | 56.7 | 57.7 | 59.7 | 62.4 | | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | | 5.8 | 6 | 6.5 | 6.7 | 6.9 | 6.9 | 7 | 7.2 | 7.3 | 7.3 | 7.4 | 7.5 | 7.6 | 7.8 | 8 | | 4.2 | 4.4 | 4.5 | 4.7 | 5 | 5.1 | 5.2 | 5.4 | 5.5 | 5.6 | 5.8 | 6 | 6.2 | 6.3 | 6.5 | | 5.62 | 6.03 | 6.50 | 7.50 | 7.90 | 10.2 | 11.1 | 11.4 | 11.8 | 12.6 | 12.9 | 14.3 | 15.9 | 18.2 | 21.8 |
|
公称直径
d | |
| s | 最大值 |
| | 最小值 |
| | d3 | 最大值 |
| | 最小值 |
| | d5 | 最小值 |
| | a | 最大值 |
| | n | ≈ |
| | 千件重(钢制)≈kg |
| | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | | 2.43 | 2.43 | 2.43 | 2.43 | 2.43 | 2.43 | 2.92 | 2.92 | 2.92 | 2.92 | 2.92 | 3.9 | 3.9 | 3.9 | 3.9 | | 65.96 | 67.96 | 70.96 | 73.96 | 74.96 | 76.96 | 79.96 | 83.04 | 85.04 | 90.04 | 95.04 | 98.54 | 103.54 | 108.54 | 113.54 | | 64.4 | 66.4 | 69.4 | 72.4 | 73.4 | 75.4 | 78.4 | 81.2 | 83.2 | 88.2 | 93.2 | 96.7 | 101.7 | 106.7 | 111.7 | | 3 | 3 | 3 | 3 | 3 | 3 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | | 8.1 | 8.2 | 8.4 | 8.6 | 8.6 | 8.7 | 8.7 | 8.8 | 8.8 | 9.4 | 9.6 | 9.9 | 10.1 | 10.6 | 11 | | 6.6 | 6.8 | 7 | 7.3 | 7.4 | 7.6 | 7.8 | 8 | 8.2 | 8.6 | 9 | 9.3 | 9.6 | 9.8 | 10.2 | | 22.0 | 22.5 | 24.6 | 26.2 | 27.3 | 31.2 | 36.4 | 41.2 | 44.5 | 49 | 53.7 | 80 | 82 | 84 | 86 |
|
公称直径
d | |
| s | 最大值 |
| | 最小值 |
| | d3 | 最大值 |
| | 最小值 |
| | d5 | 最小值 |
| | a | 最大值 |
| | n | ≈ |
| | 千件重(钢制)≈kg |
| | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | 3.9 | | 118.54 | 123.63 | 128.63 | 133.63 | 138.63 | 142.63 | 146.63 | 151.63 | 156.13 | 161.13 | 166.13 | 171.03 | 176.13 | 181.22 | 186.22 | | 116.7 | 121.5 | 126.5 | 131.5 | 136.5 | 140.5 | 144.5 | 149.5 | 154 | 159 | 164 | 168.9 | 174 | 178.8 | 183.8 | | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | | 11.4 | 11.6 | 11.8 | 12 | 12.2 | 13 | 13 | 13.3 | 13.5 | 13.5 | 13.5 | 14.2 | 14.2 | 14.2 | 14.2 | | 10.4 | 10.7 | 11 | 11.2 | 11.5 | 11.8 | 12 | 12.2 | 12.5 | 12.9 | 12.9 | 13.5 | 13.5 | 14 | 14 | | 90 | 100 | 104 | 110 | 115 | 120 | 135 | 150 | 160 | 170 | 180 | 190 | 200 | 210 | 220 |
|
公称直径
d | |
| s | 最大值 |
| | 最小值 |
| | d3 | 最大值 |
| | 最小值 |
| | d5 | 最小值 |
| | a | 最大值 |
| | n | ≈ |
| | 千件重(钢制)≈kg |
| | 4 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | | 3.9 | 4.88 | 4.88 | 4.88 | 4.88 | 4.88 | 4.88 | 4.88 | 4.88 | 4.88 | 4.88 | | 191.22 | 198.72 | 208.72 | 218.72 | 228.72 | 238.72 | 245.72 | 255.81 | 265.81 | 275.81 | 285.81 | | 188.8 | 196.3 | 206.3 | 216.3 | 226.3 | 236.3 | 243.3 | 253 | 263 | 273 | 283 | | 4 | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 5 | 5 | | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 | 14.2 | 16.2 | 16.2 | 16.2 | 16.2 | 16.2 | | 14 | 14 | 14 | 14 | 14 | 14 | 16 | 16 | 16 | 16 | 16 | | 230 | 248 | 265 | 290 | 310 | 335 | 355 | 375 | 398 | 418 | 440 |
|
①,硬度要求：
轴径d≤48mm，硬度470-580 HV或 47-54 HRC
48mm＜轴径d≤200mm，硬度435-530 HV或 44-51 HRC
200mm＜轴径d≤300mm，硬度390-470 HV或 40-47 HRC.
②,尺寸n不得超过尺寸a的最大值。 |
